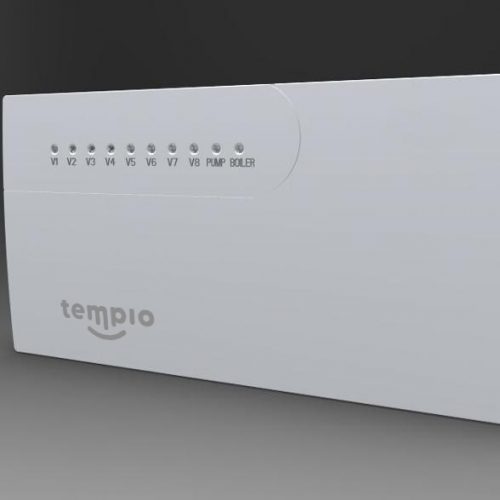

Tempio HY525 WIFI Wired Central Control unit

£123.00 inc VAT

For multi water heating system, connect with Wet, Electric under Floor heating and boiler controls

Wireless Central Control Thermostats for multi water and Electric underfloor heating system.

Out of stock

Share:

Technical Data

Power Supply AC90-240VAC 50/60HZ
Accuracy ±1ºC
Delay Time 60S
Probe sensor NTC
Power Consumption <10W
Limit Temperature 5 ºC – 99 °C

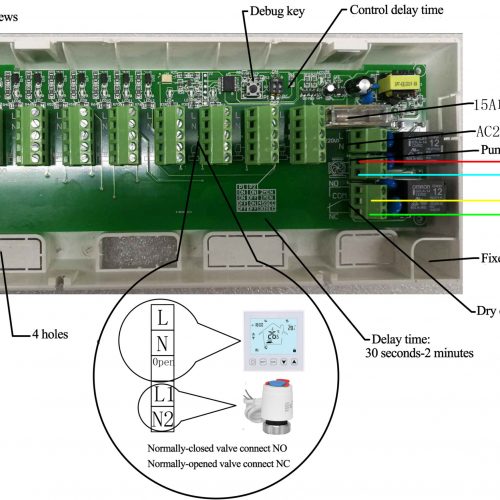

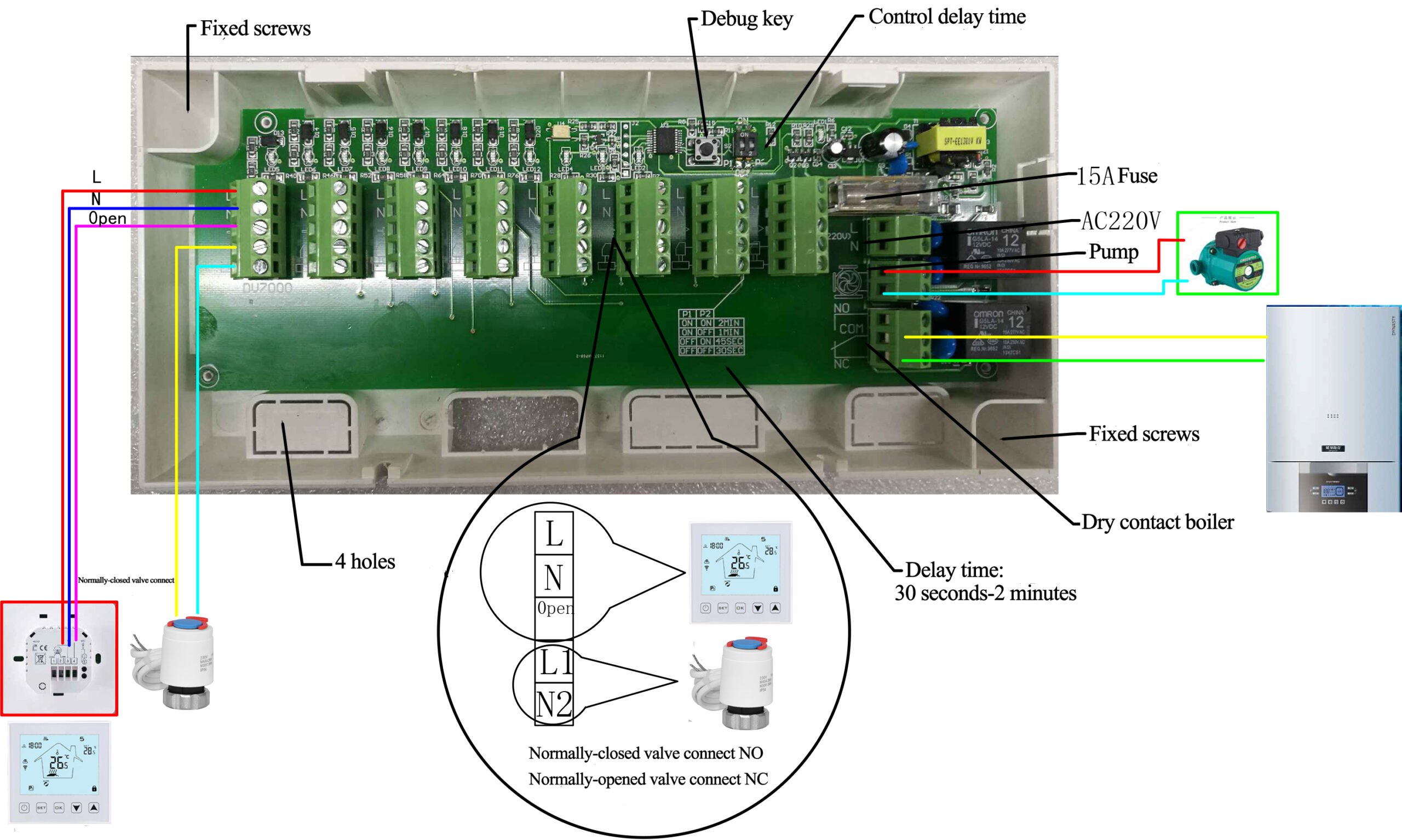

Output Switch relay -8 No Output for actuators (NO, NC)
Switch relay – 8 No Normally open connection for Thermostat
One Switch relay for Pump
One Switch relay for Boiler (Dry Contact)
Insulating condition Normal environment
Running program Set per 1 week as a cycle
Installation Wall mounted
Application Wet under floor heating System
Electric under floor heating System
Link with the Boiler control
Infrared Heater System
Certificate CE,RoHS
Communication Wireless or Wired connection with room thermostat

Product manual
